SHAP-like Beeswarm Plot

Class or Function Names

• plot_beeswarm(study, *, params=None, target=None, target_name="Objective Value", color_map="RdBu_r", ax=None)

  • study: An Optuna study with completed trials.
  • params: A list of parameter names to include. If None, all parameters across completed trials are used.
  • target: A callable that extracts a scalar value from a FrozenTrial. Defaults to trial.value.
  • target_name: Label for the x-axis. Defaults to "Objective Value".
  • color_map: Matplotlib colormap name. Defaults to "RdBu_r" (blue for low, red for high).
  • ax: Matplotlib axes to draw on. If None, a new figure is created.
  • Returns: A tuple of (figure, axes, colorbar).

Example

import optuna
import optunahub

mod = optunahub.load_module(package="visualization/plot_beeswarm")
plot_beeswarm = mod.plot_beeswarm


def objective(trial: optuna.trial.Trial) -> float:
    x = trial.suggest_float("x", 0.0, 10.0)
    y = trial.suggest_float("y", 0.0, 10.0)
    z = trial.suggest_float("z", 0.0, 10.0)
    w = trial.suggest_float("w", 0.0, 10.0)
    return 1.0 * x + 0.5 * y + 0.1 * z + 0.01 * w


study = optuna.create_study()
study.optimize(objective, n_trials=500)

fig, ax, cbar = plot_beeswarm(study)

How It Works

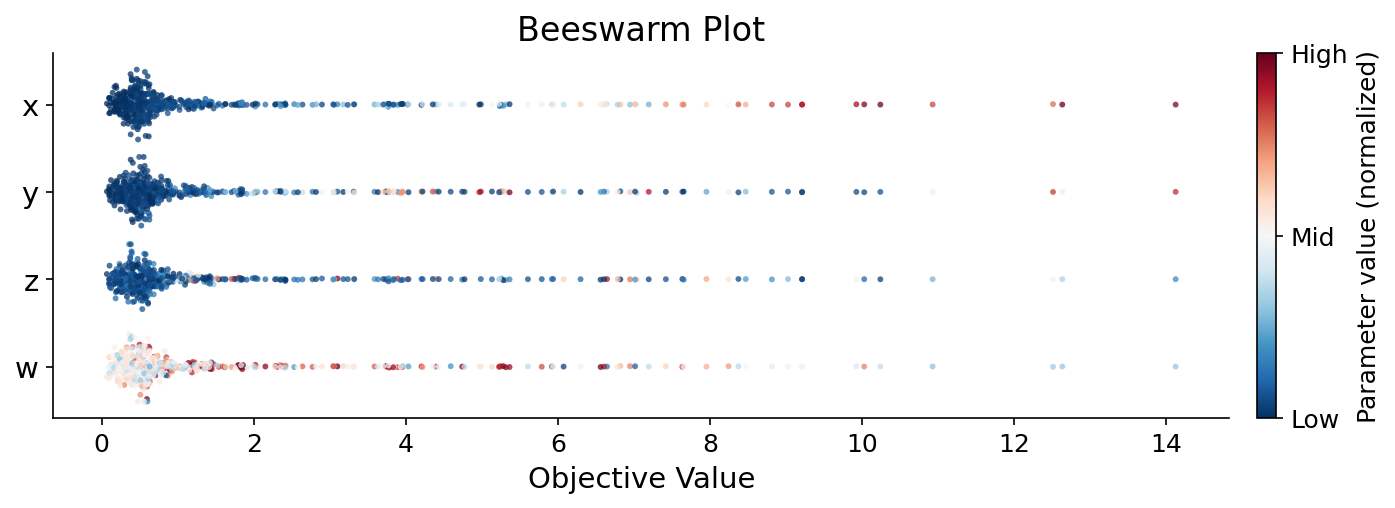

Each row in the plot represents a hyperparameter. Each dot is one trial:

• X-axis: Objective function value
• Y-axis: Parameter (rows), sorted by correlation with the objective (most important at top)
• Color: Normalized parameter value (blue = low, red = high)
• Vertical spread: Density-based jitter — wider where trials are concentrated

This makes it easy to spot monotonic relationships (e.g., “higher x leads to higher objective”) at a glance.

References

• Inspired by SHAP beeswarm plots
• Original feature request: optuna/optuna#4987
